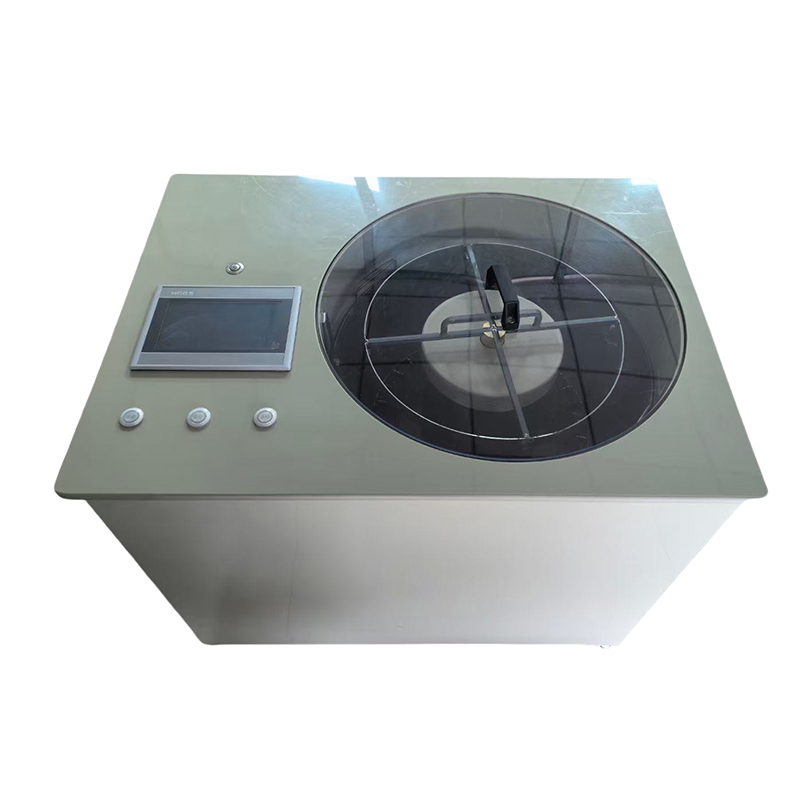

K Gold Jewelry Electropolishing Machine
Function:This machine can be used for electropolishing of various K gold jewelry, rings, bracelets, pendants, bracelets, earrings. It can replace the traditional manual polishing.
Application: Rings, bracelets, pendants, bracelets, earrings.
Capacity: 80pcs goods can be processed per hour.

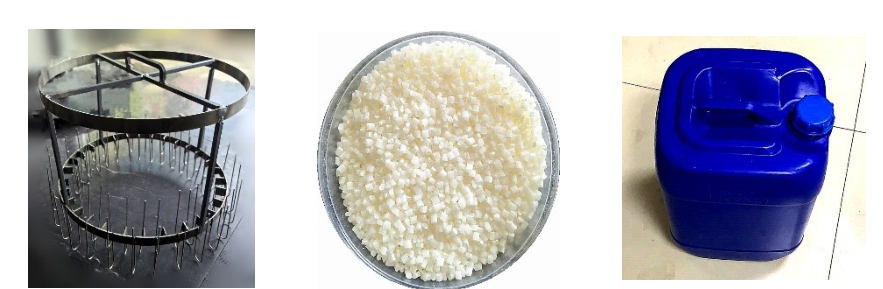

Matching accessories and electrolyte:
electropolishing hanger Abrasive electrolyte solution
Working Principle
The machine uses the principle of electrolysis and special polishing electrolyte solution to polish the surface of various K gold jewelry.
Technical Data:
Dimension | Length 0.4M*Width 0.6M*Height 0.86M |
Weight | 50KG |
Material | PVC |
Voltage | AC220V |
Power | 150A |
K Gold jewelry Electropolishing Effect
Model | Machine Dimension | Number Of hooks | Liquid Capacity | Abrasive Dosage |
AC-R1 | L810mm×W1010mm×H700mm | 120pcs | 75L | 25Kg |
AC-R2 | L810mm×W600mm×H700mm | 60pcs | 40L | 15Kg |
AC-R3 | L465×W335mm×H410mm | 20pcs | 5L | 3Kg |
AC-F3 | L420mm×W310mm×H360mm | 20pcs | 4L | 2Kg |
AC-F1 | L1100mm×W1050mm×H1300mm | 138pcs | 75L | 25Kg |
AC-F3-1 | L480mm×W580mm×H440mm | 20pcs | 4L×3 | 2Kg |
AC-F3-2 | L670mm×W480mm×H470mm | 40pcs | 6L×1 4L×1 | 4Kg |
AC-F3L | L420mm×W370mm×H400mm | 20pcs | 4L | 2Kg |
Touch Screen Electronic Control System
The electrolysis equipment developed by our company adopts advanced integrated circuits and independently developed automatic control systems. It has a friendly interface, simple operation and powerful functions. The machine has automatic circuit input and output protection functions. The touch screen integrates all parameter settings, the operating system language can be set, and the touch screen and physical buttons can control the machine synchronously. The detailed functions are as follows:
- Current and voltage display function
- Current and voltage conversion function
- Current and voltage adjustment function
- Running time timing function
- Running time display function
- Motor speed adjustment function
- Motor forward and reverse time setting function
- Timing alarm function
- Phase loss, output short circuit/overload, over-temperature automatic protection
- Machine failure automatic protection alarm function.
- Timing alarm time is adjustable
Feature:
- Mature technology, stable quality metal surface treatment processing technology, one machine replaces the traditional mold holding and polishing process, saving you costs and improving delivery efficiency.
- Advanced technology, breakthrough innovation, breaking through the existing jewelry surface treatment process multiple technologies, achieving no stone, no stone drop, no nail damage, no dead corner, no concave gap, and full coverage of all parts of wax-set jewelry.
- High efficiency, low cost, one machine can replace multiple workers, greatly improve processing efficiency, improve quality, and save you labor costs to the maximum extent.
- Simple and safe processing, single machine 4 square meters site, 220V working voltage, environmentally friendly, non-toxic and durable consumables, simple and easy to learn operation.
- Effectively remove casting marks and frosted marks on various parts of the workpiece, and the surface of the workpiece is flat and bright after treatment. (Rings, earrings, pendants, bracelets, necklaces and other workpieces can be processed at one time.
- The machine can process 14K, 20K, K red, K white, K yellow and other K gold jewelry to reduce losses, and the loss recovery rate can reach more than 96%.
